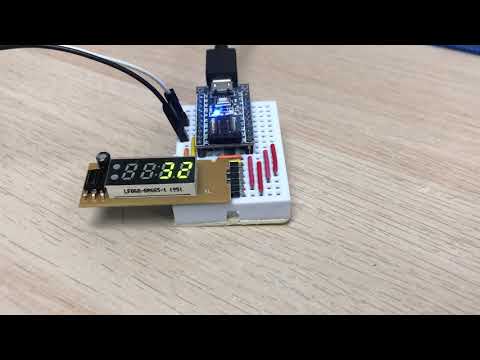

What is it? =========== **TM1650_STM8** is a library for the [Arduino](http://arduino.cc/) to interface with Seven Segment Display based on the TM1650 controller or compatibles (FD650B) for [STM8s](https://github.com/tenbaht/sduino) under I2C interface. Due to the Flash memory size limitation, it does **NOT** support input features (keypress scan). This is a modified version of the [Mozz_TM1650 library](https://github.com/mozgy/Mozz_TM1650) written by [Mario Mikočević](https://github.com/mozgy). It is ported from C++ to C syntax and is meant to be used with the sduino environment for the STM8. This library is meant to have a minimal memory footprint.   Installation ============ Download the zip file. Then extract and copy to **Sketch Location** (You could check it from **Arduino Preferences**), usaually could be: **Documents\Arduino\hardware\sduino\stm8\libraries**  How it Works ============ To use this library, you must first connect your Display to the proper pins on the STM8s. The connections would be the following: Display Pin | STM8 Pin -------------|------------ V / VCC | +3.3V Pin / +5V C / SCL | PD4 D / SDA | PB5 G / GND | Ground Pin Demo video ============ [](https://www.youtube.com/watch?v=BmOw3vWxCEU "TM1650 / FD650B") Others ============== The library allows to reduce the extra 67 bytes sketch size, defined by an macro variable `TM1650_MEMORY_SAVER` in file `TM1650_STM8.h`.
