Plot_World_Map
★ 11
Open GitHub ↗
make a beautiful world map use R
Download README (.md)
Explore Similar Repositories
elevator-nds
:
Port of my Godot game "Elevator" to the Nintendo DS
chatroom-server
:
A simple server that supports front-end exercise projects
multi-view
:
Multi-view of text and graph
tauri-htmx-test
:
A teeny attempt at using htmx as a front end for tauri
stock-pulse
:
An efficient and intuitive inventory management application designed for e-commerce businesses.
// repository documentation
Was this content helpful?
★ 0
(0 ratings)
Select Rating:
★
★
★
★
★
Submit Feedback
Recent Feedback
×
Download README
Do you want to download the
README.md
file for
Plot_World_Map
?
Download (.md)

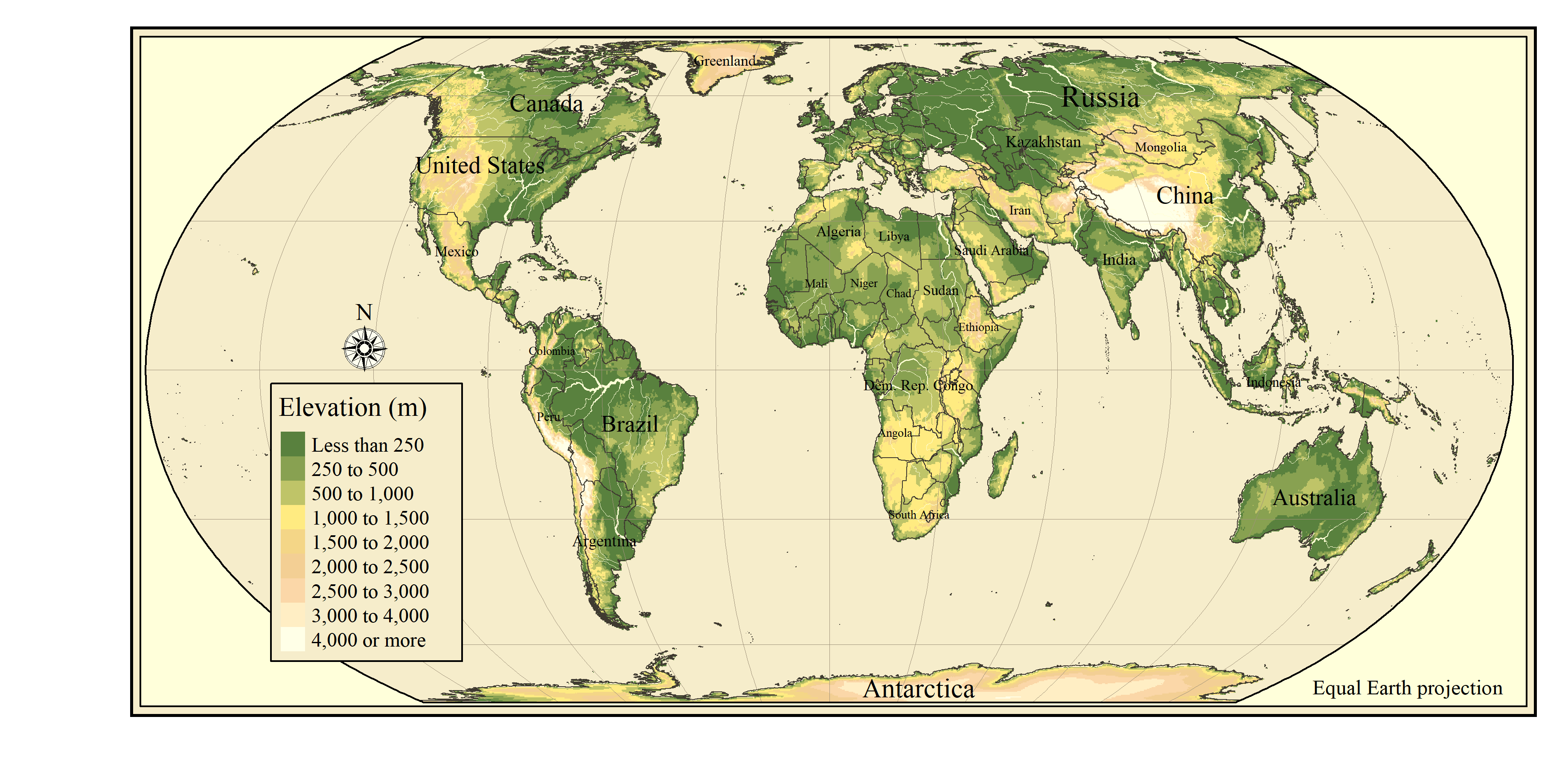

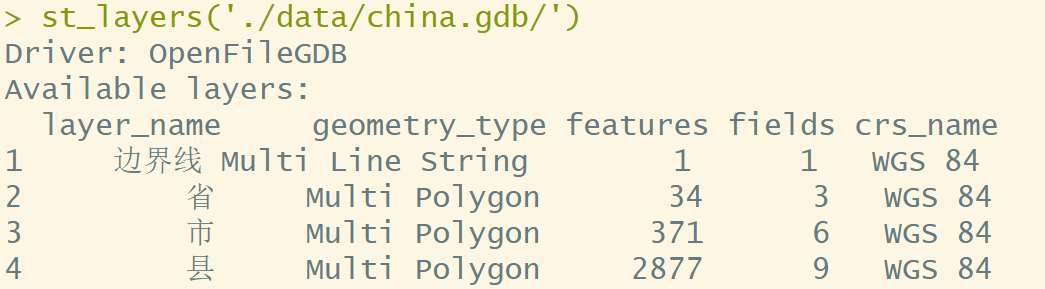

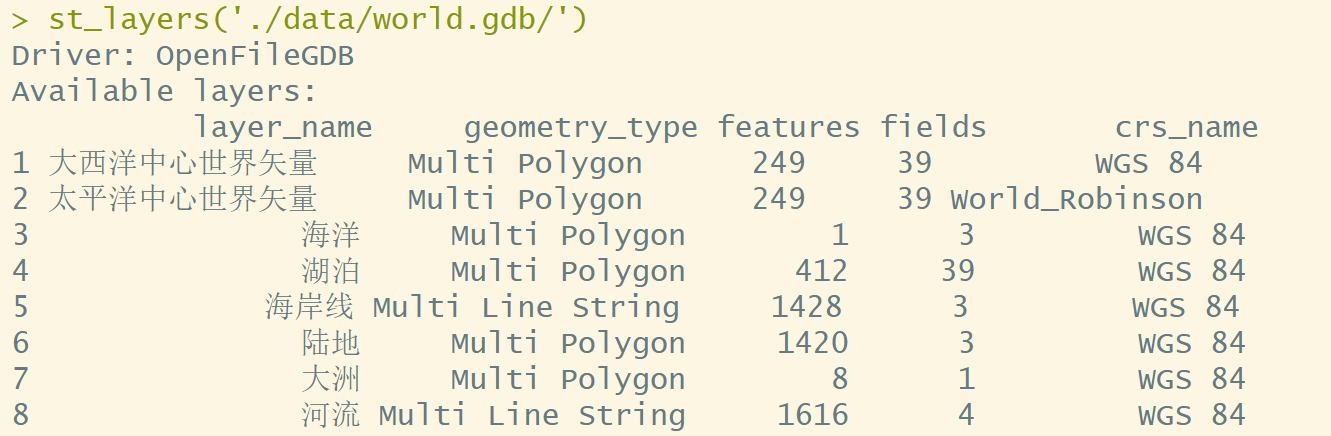

# `R`语言绘制精美世界地图 ## 以大西洋为中心的世界地图 ```R library(sf) library(tmap) library(terra) library(tidyverse) data("land", "rivers", package = "tmap") sf_use_s2(FALSE) # 绘制以大西洋为中心世界地图 rivers |> st_transform(8857) -> rivers world = read_sf('./data/world.gdb',layer='大西洋中心世界矢量') |> st_transform(8857) cn = read_sf('./data/china.gdb',layer='边界线') |> st_geometry() land |> rast() %>% .[[4]] -> elev names(elev) = 'elevation' plot(elev) elev |> project(crs('epsg:8857')) |> plot() elev |> project(crs('epsg:8857'))-> elev tm_shape(elev)+ tm_raster(breaks = c(-Inf, 250, 500, 1000, 1500, 2000, 2500, 3000, 4000, Inf), palette = terrain.colors(9), title = "Elevation (m)") + tm_shape(rivers) + tm_lines("lightblue", lwd = "strokelwd", scale = 1.5, legend.lwd.show = FALSE) + tm_shape(world,is.master = TRUE) + tm_borders("grey20", lwd = .5) + tm_text("name", size = "area",legend.size.show=FALSE,legend.col.show=FALSE) + tm_shape(cn) + tm_lines("grey20", lwd = .9) + tm_graticules(labels.size = 0.4, lwd = 0.25,labels.show =FALSE) + tm_compass(size=1.6,position = c(0.14,0.5)) + tm_credits("Equal Earth projection", position = c("RIGHT", "BOTTOM")) + tm_style("classic", bg.color = "lightblue", space.color = "grey90", frame.doule.line = FALSE, earth.boundary = TRUE) + tm_legend(position = c(0.1,0.08), frame =TRUE) -> world_elev_map tmap_save(world_elev_map, "world_elev_map.png", width = 6.125, scale = .7, dpi = 600) ```  ## 以太平洋为中心的世界地图 ```R # 处理世界地图矢量 world = read_sf('./data/world.gdb',layer='大西洋中心世界矢量') 'PROJCS["World_Robinson", GEOGCS["WGS 84", DATUM["WGS_1984", SPHEROID["WGS 84",6378137,298.257223563, AUTHORITY["EPSG","7030"]], AUTHORITY["EPSG","6326"]], PRIMEM["Greenwich",0], UNIT["Degree",0.0174532925199433]], PROJECTION["Robinson"], PARAMETER["longitude_of_center",150], PARAMETER["false_easting",0], PARAMETER["false_northing",0], UNIT["metre",1, AUTHORITY["EPSG","9001"]], AXIS["Easting",EAST], AXIS["Northing",NORTH], AUTHORITY["ESRI","54030"]]' -> targetCrs world |> st_transform(st_crs(targetCrs)) |> st_geometry() |> plot() c(-0.0001 - 30, 90, 0 - 30, 90, 0 - 30, -90, -0.0001 - 30, -90, -0.0001 - 30, 90) |> matrix(ncol = 2, byrow = TRUE) |> list() |> st_polygon() |> st_sfc(crs = 4326) %>% st_sf(geometry = .) -> polygon world |> st_difference(polygon) |> st_transform(st_crs(targetCrs)) |> st_cast('MULTIPOLYGON')-> world2 plot(world2['name']) write_sf(world2,'./data/world.gdb',layer='太平洋中心世界矢量',overwrite=TRUE) # 绘制以太平洋为中心的世界地图 data("land", "rivers", package = "tmap") world = read_sf('./data/world.gdb',layer='太平洋中心世界矢量') rivers |> st_transform(st_crs(targetCrs)) -> rivers cn = read_sf('./data/china.gdb',layer='边界线') |> st_transform(st_crs(targetCrs)) |> st_geometry() land |> rast() %>% .[[4]] -> elev names(elev) = 'elevation' plot(elev) elev |> project(crs(vect(world))) |> plot() elev |> project(crs(vect(world)))-> elev tm_shape(elev)+ tm_raster(breaks = c(-Inf, 250, 500, 1000, 1500, 2000, 2500, 3000, 4000, Inf), palette = terrain.colors(9), title = "Elevation (m)") + tm_shape(rivers) + tm_lines("lightblue", lwd = "strokelwd", scale = 1.5, legend.lwd.show = FALSE) + tm_shape(world,is.master = TRUE) + tm_borders("grey20", lwd = .5) + tm_text("name", size = "area",legend.size.show=FALSE,legend.col.show=FALSE) + tm_shape(cn) + tm_lines("grey20", lwd = .9) + tm_graticules(labels.size = 0.4, lwd = 0.25,labels.show =FALSE) + tm_compass(size=1.5,position = c(0.05,0.4)) + tm_credits("Robinson projection", position = c("RIGHT", "BOTTOM")) + tm_style("classic", bg.color = "lightblue", space.color = "grey90", frame.doule.line = FALSE, earth.boundary = TRUE) + tm_legend(position = c(0.005,0.027), frame =TRUE) -> world_elev_map2 tmap_save(world_elev_map2, "world_elev_map2.png", width = 6.5, scale = .7, dpi = 600) ```  ## 项目数据集介绍 ### `china.gdb`：  > 边界线图层为中国陆上国界线和南海九段线 > > 省图层为中国省级行政区划 > > 市图层为中国市级行政区划 > > 县图层为中国县级行政区划 ### `world.gdb`：  > 大西洋中心世界矢量图层是以大西洋为中心的世界国家行政边界（中国部分国界线已处理） > > 太平洋中心世界矢量图层是以太平洋为中心的世界国家行政边界（中国部分国界线已处理） > > 海洋图层是世界几个大洋的矢量面 > > 湖泊图层是世界主要湖泊的矢量面 > > 海岸线图层是世界海岸线的矢量线 > > 陆地图层是世界大洲的矢量面，大洲图层亦是 > > 河流图层是世界主要河流的矢量线 ## [作者知乎博客](https://www.zhihu.com/people/lyu-geosocial)
