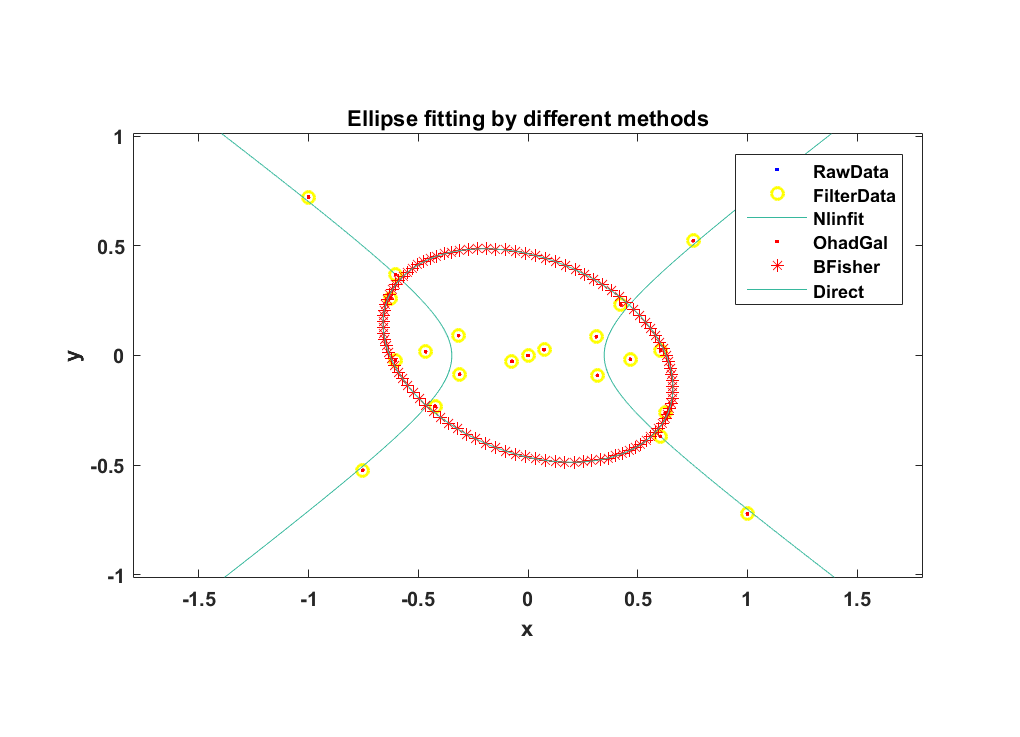

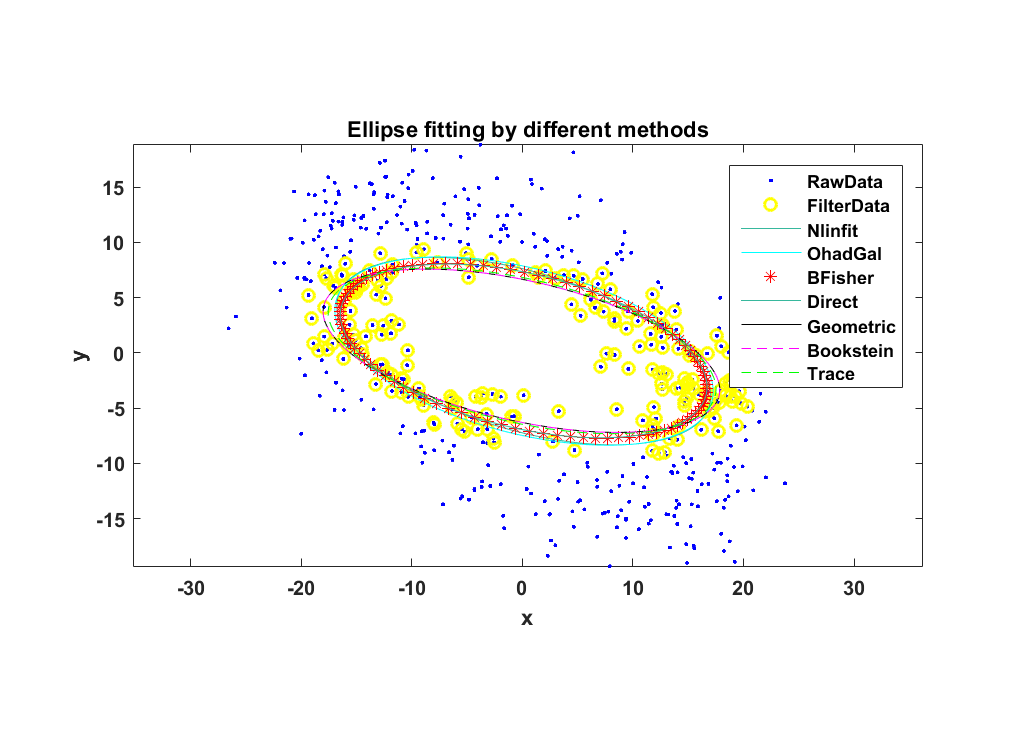

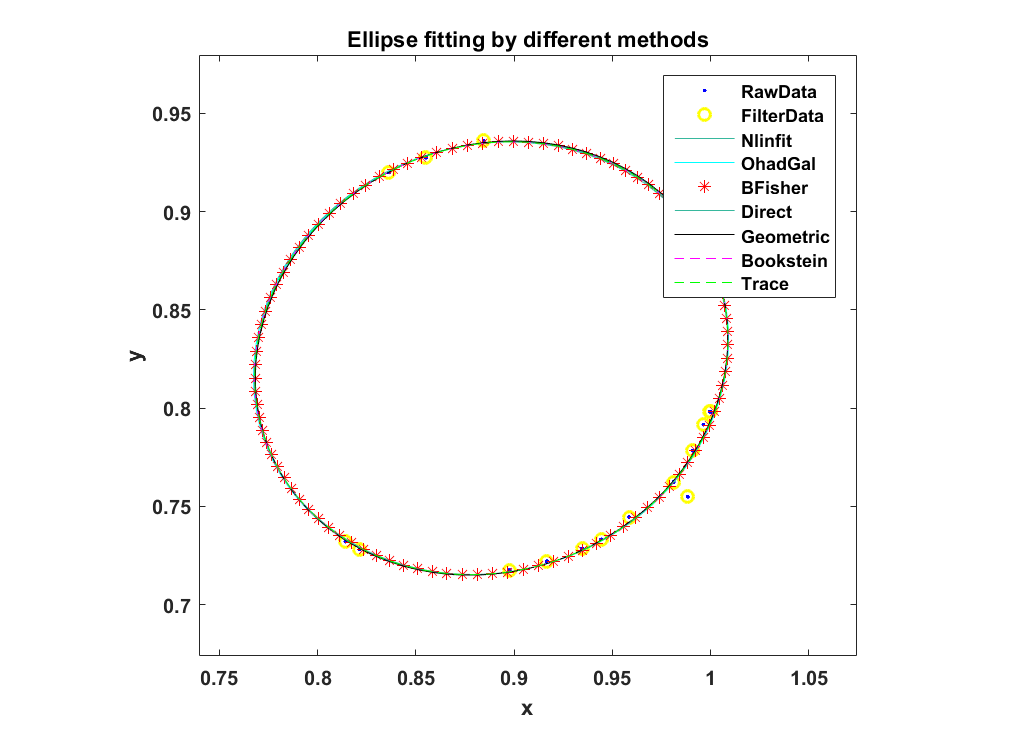

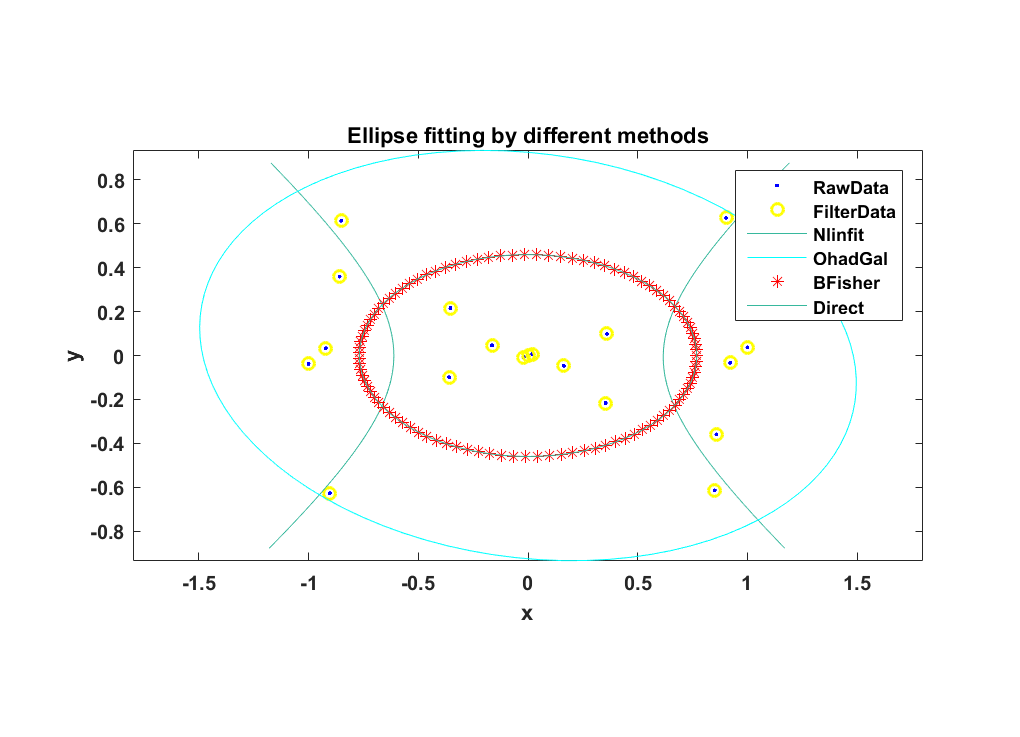

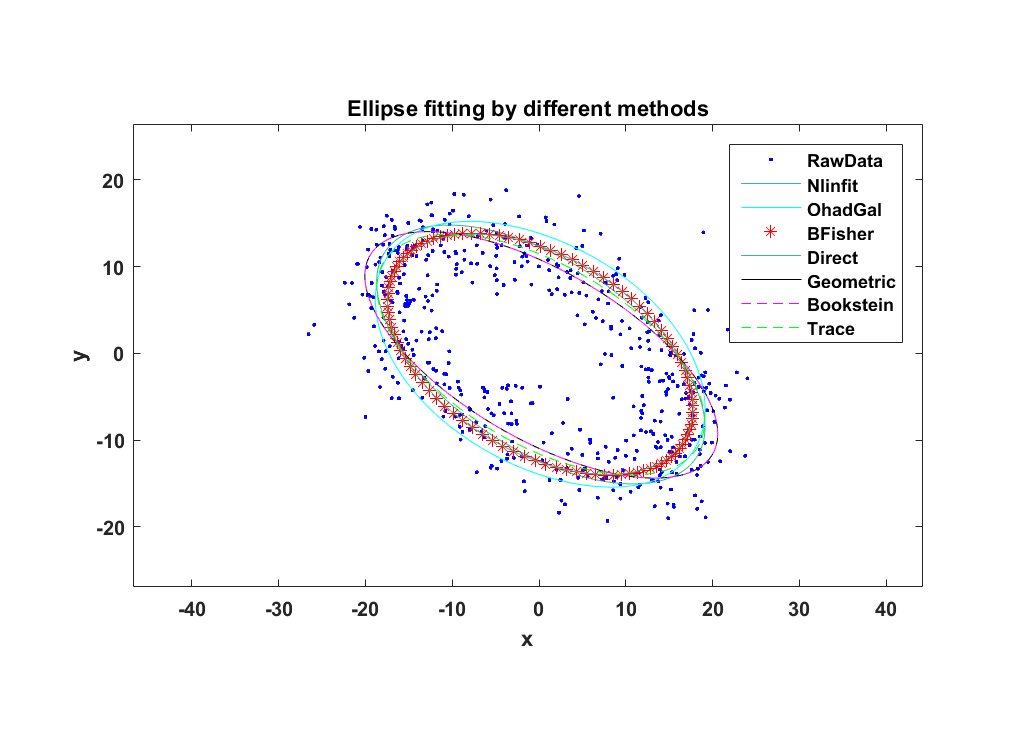

# EllipseFit ## Abstract - Study theories of ellipse fitting - Coding to realize ellipse fitting, _matlab_ and _C++_ - Make comparison of different ellipse fitting theories or functions - Considering the disadvantages of least square fitting methods for conic section, search an effective and robost method. ## Methods Comparison Through Matlab Code - Description: make comparison of five types of ellipse fitting methods or functions - Codes: ./matlab - Figures: ./figures - Methods 1. General Conic Fitting With Least Squares Method - funcEllipseFit_nlinfit Description: General conic fitting by calling _nlinfit_ function in matlab, and return fitted conic coefficients of ellipse, parabola or hyperbola, depending on the distribution of scattered points. - funcEllipseFit_OGal Description: Ellipse fitting using least squares criterion and return structure containing fitted status and geometric parameters of ellipse. If ellipse fitting failed, status is parabola or hyperbola and geometric parameters are null; if ellipse fitting succeeded, status is null and geometric parameters are returned.This method is implemented by Ohad Gal. 2. Constrainted Conic Fitting with Least Squares Method - funcEllipseFit_RBrown Description: Ellipse fitting using nonlinear least squares by optimising the squared sum of orthogonal distances from the points to the fitted ellipse, with Bookstein or Euclidean-invariant constraints. This method is implemented by Richard Brown. - [funcEllipseFit_BFisher](http://homepages.inf.ed.ac.uk/rbf/CVonline/LOCAL_COPIES/FITZGIBBON/ELLIPSE/) Description: **Direct** least squares fitting of ellipse with several advantages: (i) It is ellipse-specific so that even bad data will always return an ellipse; (ii) It can be solved naturally by a generalized eigensystem and (iii) it is extremely robust, efficient and easy to implement. This method is implemented by Bob Fisher, and geometric ellipse parameters are returned. - funcEllipseFit_direct Description: Another implementation of **direct ellipse fitting** developed by Bob Fisher and his coworkers. This method is implemented by Nikolai Chernov, and conic coefficients of ellipse are returned. - Examples The examples are presented to illustrate the effectiveness of above methods, and make some comparison. 1. Perfect ellipse-shaped scatters  For perfect ellipse-shaped scatters, all above methods make perfect ellipse fitting implementation. 2. Hyperbola-Ellipse scatters  For hyperbola-shaped scatters with some distribution features of ellipse, funcEllipseFit_nlinfit method could fitted a hyperbola, funcEllipseFit_OGal and both direct ellipse fitting methods gave a fitted ellipse, where fitted ellipse by funcEllipseFit_OGal may a little diverge from scatters, while funcEllipseFit_RBrown method failed. 3. Hyperbola-shaped scatters  For hyperbola-shaped scatters, funcEllipseFit_nlinfit method could fit a hyperbola, and direct ellipse fitting methods gave a fitted ellipse, while other methods failed. 4. Perfect ellipse-shaped scatters For this example, Random Sample Consensus (RANSAC) filtering are performed. Despite the fitting comparison of different ellipse fitting methods, the effect of RANSAC is also demonstrated.   For noisy scattered points, RANSAC filtering can effectively eliminate the influence of noise, and be helpful for better ellipse fitting. For different ellipse fitting methods, the direct methods always present the best performance. ## Direct Ellipse Fitting Method Implementation in C++ - Description: Implement direct ellipse fitting method in C++ template class - Folder: ./C++ - Class: DirectEllipseFit (DirectEllipseFit.h & DirectEllipseFit.cpp) - Usage 1. Create object DirectEllipseFit<type> ellipFit(xVec, yVec); 2. Perform ellipse fitting and get fitted ellipse Ellipse ellip = ellipFit.doEllipseFit(); ## Conclusions Through the methods description and examples demonstration, we can conclude that direct least squares method is perfect in ellipse fitting, with efficiency, robustness and accuracy. What's more, both the matlab and C++ programs are implemented, which can be used in industrial application. ## Reference 1. [Fitzgibbon, A., et al. (1996). "Direct least square fitting of ellipses." IEEE Transactions on pattern analysis and machine intelligence 21(5): 476-480.](./1996-Fitzgibbon-Direct least square fitting of ellipses.pdf)
