AIC2021_TPU_Template
?
Download (.md)

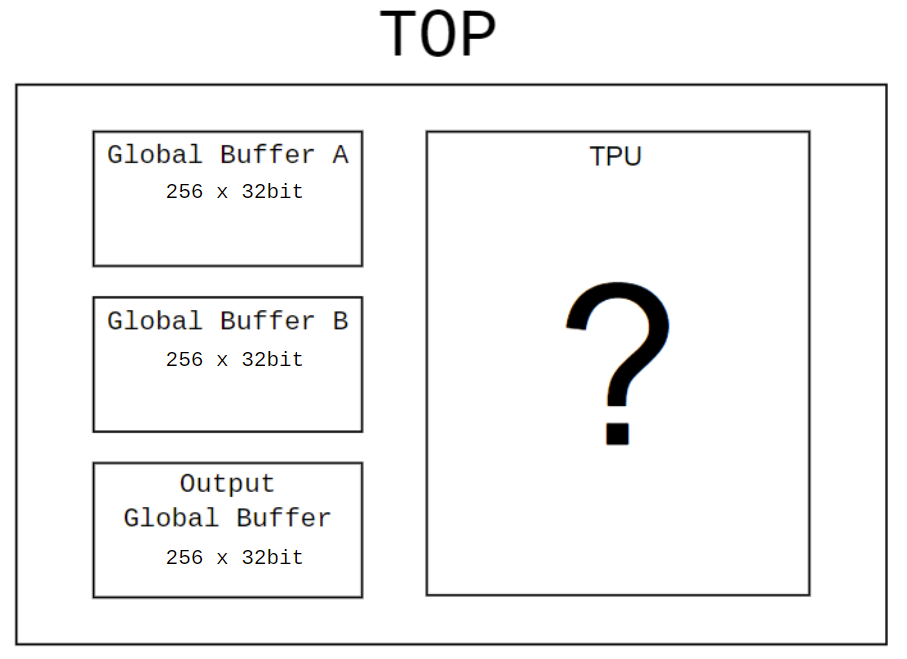

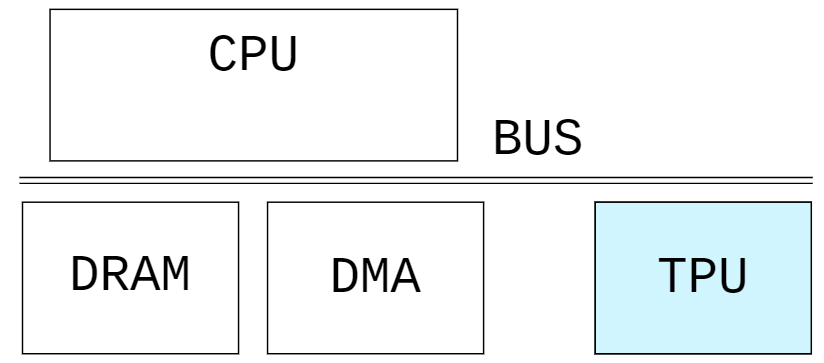

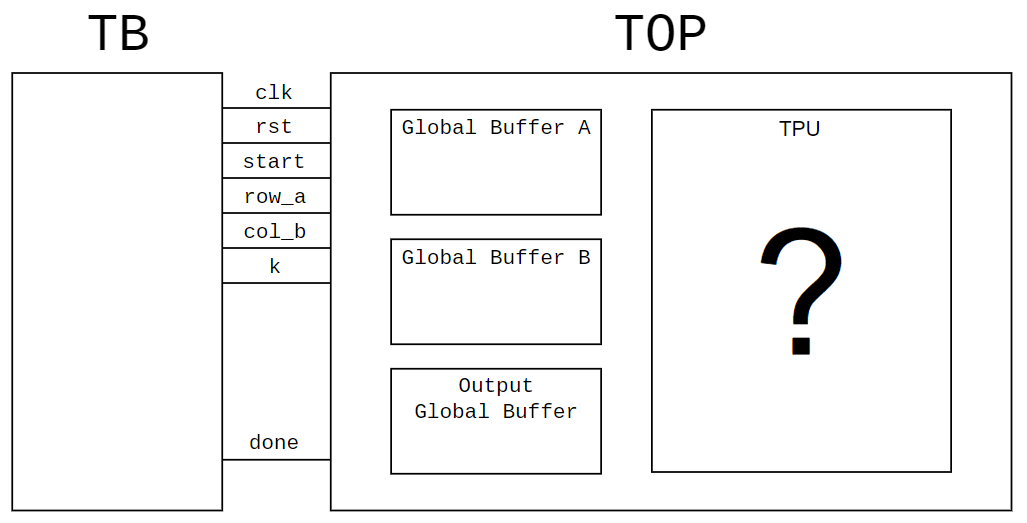

# AIC2021 Project1 - TPU ###### tags: `aic2021` ## Project Description Design a Tensor Processing Unit(TPU) which has **4x4** Processing elements(PEs) that is capable to calculate ```(4*K)*(K*4)``` 8-bit integer matrix muplication. (Where is ```K``` is limited by the size of input global buffer) **Project Constraints** 1. Your designs should be written in verilog language. 2. Your PEs shouldn't more than **4x4**, where a 2D systolic array architecture is **strictly required** in this project. 3. An 8-bit data length design. 4. 3KiBytes in total of global buffer size. **Project Deadline** * May 7, 2021, 23:00  * You should know that in real world, TPU is a Deep Learning Processor(DLP) on the common bus, data is prepared continously by CPU or DMA from DRAM. * In this project, you should focus only on the design and dataflow inisde the TPU, instead of full system simulation including CPU, DMA, and DRAM (Make it simple :smile: unless you need more challange). ## Project directory hierachy ``` AIC2021_TPU/ +-- tb/ | +-- matmul.py | +-- top_tb.v +-- src/ | +-- define.v | +-- global_buffer.v | +-- top.v | Makefile ``` ## TOP Simulation Achitecture  * Your TPU design should be under the top module which provided by TA. * TOP module includes three global buffers prepared for your TPU. Each of the global buffers has its own read write port, ```256x32bit=1KiBytes``` size and result in total ```3KiBytes``` of global buffer. * Although the global buffer is provided by TA, you are free to design your own global buffer's behavior, except the **name of the global buffers** which already defined in testbench in order to load the data & check the correctness of the output. ## Testbench  * At the start of the simulation, tb will load the global buffer A & B, which assume that CPU or DMA has already prepared the data for TPU in global buffer. When signal ```start==1```, the size of the two matrices will be available for TPU (```m```, ```n```, ```k```). * ```A(M*K)*B(K*N)``` * You should implement your own data loader, process elements(PEs), and controller which schedules the data in global buffer A & B to be calculated in the systolic array. * Testbench will compare your output global buffer with golden, when you finish the calculation(```done==1```). **Prerequisite** * python3 with numpy library installed * iverilog, ncverilog (or any other verilog compiler) **Makefile** * ```make test1``` * ```A(2*2)*B(2*2)``` * ```make test2``` * ```A(4*4)*B(4*4)``` * ```make test3``` * ```A(4*K)*B(K*4)```, where ```K=9``` * ```make monster``` (extra) * ```A(M*K)*B(K*N)```, where ```K<10```, ```M<10```, ```N<10``` * Although our target is ```(4*K)*(K*4)``` matrix multiplication, when ```M``` & ```N``` is small enough to fit in the input global buffers, give a solution for that size of input matrices. :smile: * ```make clean``` * This will remove the ```build/``` folder **Global buffer mapping** ``` build/ +-- matrix_a.bin +-- matrix_b.bin +-- golden.bin ``` * Memory Mapping - Type A (with transpose)  * Memory Mapping - Type B (Without transpose)  * As shown in the figure above, two figures give an example of ```A(6*6)*B(6*6)```, how is the memory mapping of 8-bit matrix data into 32-bit global buffer. Your output global buffer should follow the memory mapping - type B. ## Grading Scores * Testbench1~3 (70%) * Designs of dataflow in TPU * Execution time ranking in class * Data reuse method * Pass atleast test1~3 * Readme (20%) * **Members' Student ID** * TPU architecture graph * Explain your dataflow in TPU * Pls descript as much as you can * ... * Extra (20%) * Support ```(M*K)*(K*N)``` * or other features * please provided you own testbench for the extra features * Good coding style * Plagiarizing(copy-&-paste) others code is probihited * Dont try to do that :smile:, warning from TAs -100% * Synthesis (10%) * Any synthesis tools is acceptable * Synthesis your TPU module only * list your cell library or FPGA * timing report, area report
