craftos-esp
★ 9
Open GitHub ↗
A port of CraftOS-PC for ESP32-S3.
Download README (.md)
Explore Similar Repositories
twig-storybook
:
Extends Twig with new "stories" and "story" tags for easily writing Storybook stories using Twig templates.
Vidsync
:
A DOS terminate and stay resident (TSR) program to fix display calibration for the Book8088
HEDNet-nusc
:
HEDNet: A Hierarchical Encoder-Decoder Network for 3D Object Detection in Point Clouds (NeurIPS 2023)
circular-dependency-cases
:
show how bundlers deal with circular dependencies
splunk_hec_aio
:
Splunk HEC AIO Class
// repository documentation
Was this content helpful?
★ 0
(0 ratings)
Select Rating:
★
★
★
★
★
Submit Feedback
Recent Feedback
×
Download README
Do you want to download the
README.md
file for
craftos-esp
?
Download (.md)

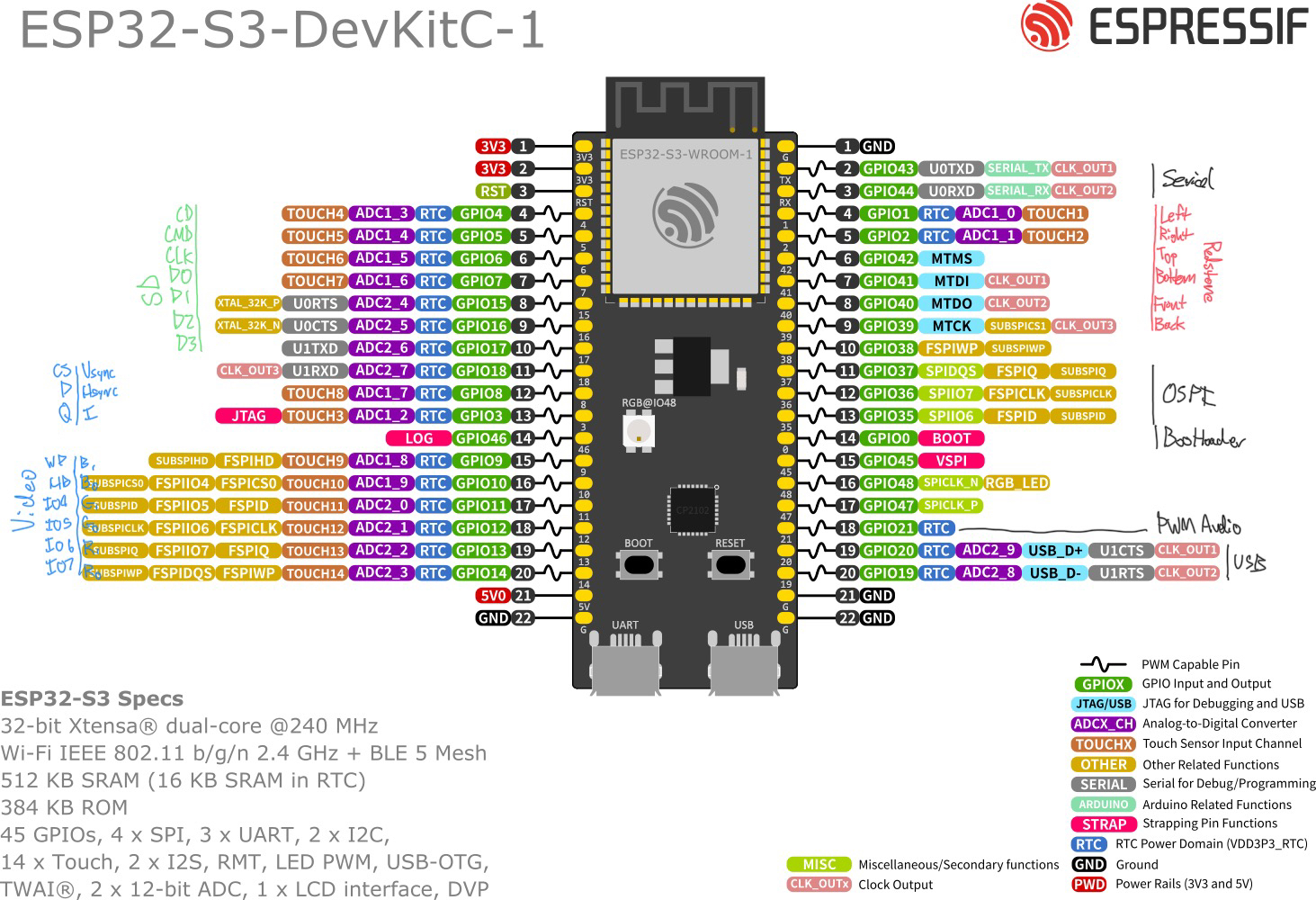

# CraftOS-ESP A port of CraftOS-PC for ESP32-S3. ## Features - CC: Tweaked 1.109.2 emulation - Lua 5.2 runtime - VGA terminal display with 53x22 resolution - 320x200 logical resolution - 640x400@85Hz output mode - 80 possible colors, 16 used - USB port for keyboard input - Supports all keys - Does not support keyboards with internal USB hubs - Supports reading and writing internal and external files - 2 MB internal storage (can be expanded on modules with more flash) - SD card slot for external storage, mounted as disk drive at `/disk` - Wi-Fi/HTTP connectivity - Use the `wifi` command to connect to a network - Wi-Fi configuration is saved and automatically re-connected on boot - HTTP/HTTPS supported - Audio out through speaker peripheral - Mono PWM audio output - May not be viable due to memory constraints - Modem communication over 802.11 Wi-Fi ## Requirements - System: ESP32-S3 module with 16+ MB flash, 2+ MB PSRAM minimum (32/8 ideal) - VGA: VGA breakout port/connector and a resistor bridge for DACs (reference: 3x ~710 ohm + 6x ~1400 ohm) - SD: SD/microSD breakout/port with full SD pins (no SPI only boards) - Audio: 3.5mm jack, RC filter over PWM output recommended - USB: USB-A port/breakout (devkit USB port doesn't supply power, so USB-OTG won't work) ## Wiring  ## License CraftOS-ESP and craftos2-lua are licensed under the MIT License. craftos2-rom is licensed under the Mozilla Public License and the ComputerCraft Public License. CraftOS-ESP contains portions of code from ESP-IDF, which is licensed under the Apache 2.0 License.
